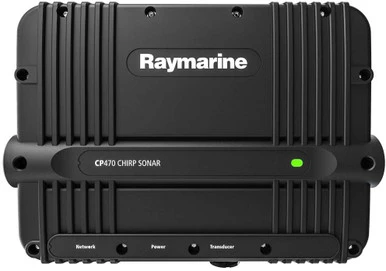

Raymarine E70298 CP470 CHIRP Sonar Module

The Raymarine E70298 CP470 CHIRP Sonar Module delivers high performance Sonar for coastal and offshore fishing. Created for serious anglers, the Raymarine CP470 sonar module brings high-res CHIRP sonar imagery and best-in-class target separation to Raymarine multifunction displays. With its wide spectrum of frequencies and improved sensitivity, the CP470’s advanced CHIRP transceiver can see through dense schools of baitfish, identify thermoclines, and target desired game fish at the same time. Rated for rough conditions and offshore use, the CP470 can intelligently filter out unwanted noise while producing high-res fish targets and reliable bottom tracking.

Raymarine CP470 CHIRP Sonar Module Features:

• Sonar Type: Wide Spectrum CHIRP
• TruZoom offers magnified views of bottom structure, fish targets, and baitfish without the usual loss of resolution
• Airmar Wide Beam transducer compatible
• Automatic transducer identification with Airmar Xducer ID
• IPX6 Waterproof rugged aluminum enclosure
• Compatibility: gS Series, eSeries, cSeries, aSeries
• Connections:
  • Power connection
  • Network connection (RayNet connector) 10/100 Mb/s
  • Transducer connection
• Power: 1kW / 2kW depending on transducer
• Frequency & Channels: Dual independent CHIRP channels from 25 to 250kHz
• Depth Range: 10,000 ft. (3,000M)
• Power Consumption: 30.6W (Max.)
• Nominal Supply Voltage: 12/24 V DC
